Our Products

Industrial-grade monitoring platforms engineered for precision, durability, and control.

ISO 9001 Certified IP66 Rated 21 CFR Part 11 ESD 2000V Protected Made in India

Product Catalog

From compact loggers to plant-wide acquisition systems

Flagship
GM-DL Pro Series Industrial Data Logger

GM-DL Pro Series

Multi-Channel Industrial Data Acquisition System

Our flagship multi-channel data logger, engineered for extreme factory floors. Machined industrial aluminum enclosure, IP66 rating, EMI/RFI shielding, and 50+ years of continuous logging capacity.

  • 4 / 8 / 16 Independent Channels
  • 0°C to 1024°C Measurement Range
  • ±0.1% Full Scale Accuracy
  • 7" Touch Capacitive Display
  • IP66 Industrial Enclosure
  • WiFi + MQTT IoT Ready
View Full Specs Request Quote
Platform

GM-SCADA Dashboard

Click to view the Live Interactive Demo

LIVE DATA SIMULATION

GM-SCADA Platform

Industrial Monitoring, Control & Alarm Management System

Complete plant-floor monitoring and control solution. Real-time sensor data visualization, programmable alarm management, equipment control, and cloud connectivity — all accessible from any device via a secure web interface.

  • Real-time Multi-channel Monitoring
  • Alarm Management & Escalation
  • Equipment ON/OFF Control
  • Setpoint Remote Configuration
  • Trend Graphs & Historical Data
  • Web HMI Zero-Install Access
  • MQTT/REST Cloud Integration
  • Role-based Access Control
Live Dashboard Demo

More Products

Solutions tailored to diverse monitoring requirements

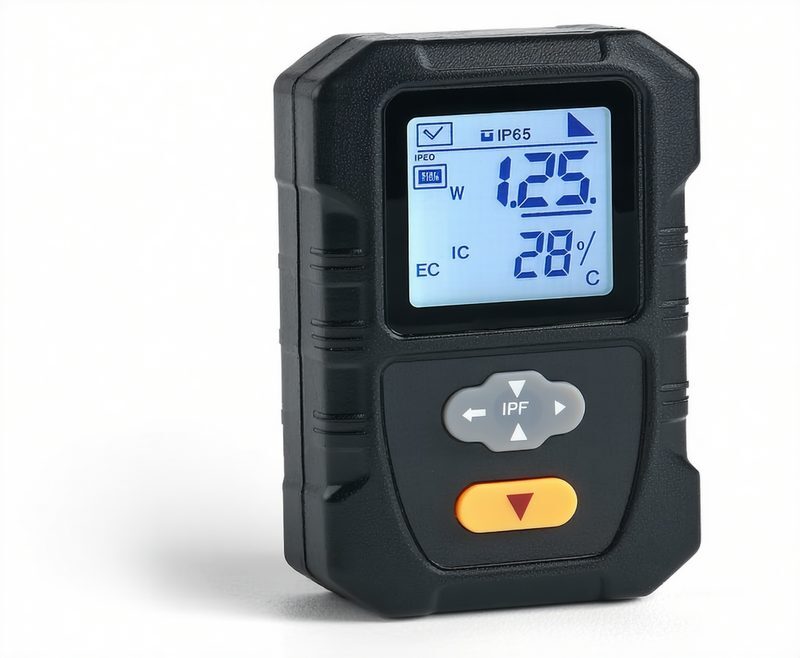

GM-DL Lite

GM-DL Lite

Compact Single-Channel Logger

  • 1 K-Type Thermocouple input
  • 0°C to 800°C range
  • Battery powered (1 year life)
  • USB data extraction
  • Pocket-size, IP65 rated
Enquire

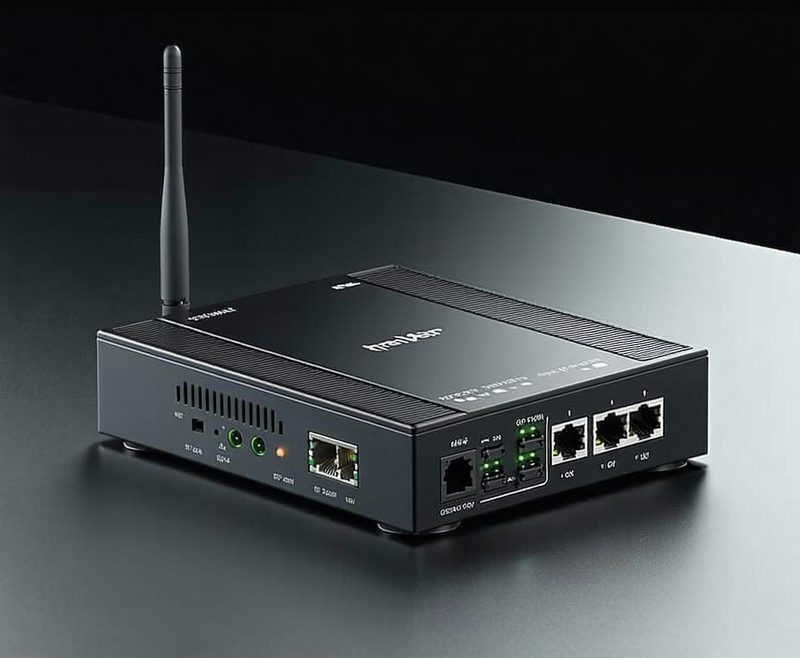

GM-DL Cloud

GM-DL Cloud

IoT-First Wireless Logger

  • 4G/WiFi/BLE connectivity
  • Cloud dashboard included
  • Real-time SMS/email alerts
  • Multi-sensor support
  • REST API for integration
Enquire
GM-DL Pharma

GM-DL Pharma

21 CFR Part 11 Compliant

  • Pharma-grade accuracy
  • Audit trail & e-signatures
  • Tamper-evident logging
  • Auto PDF report generation
  • Calibration certificate
Enquire

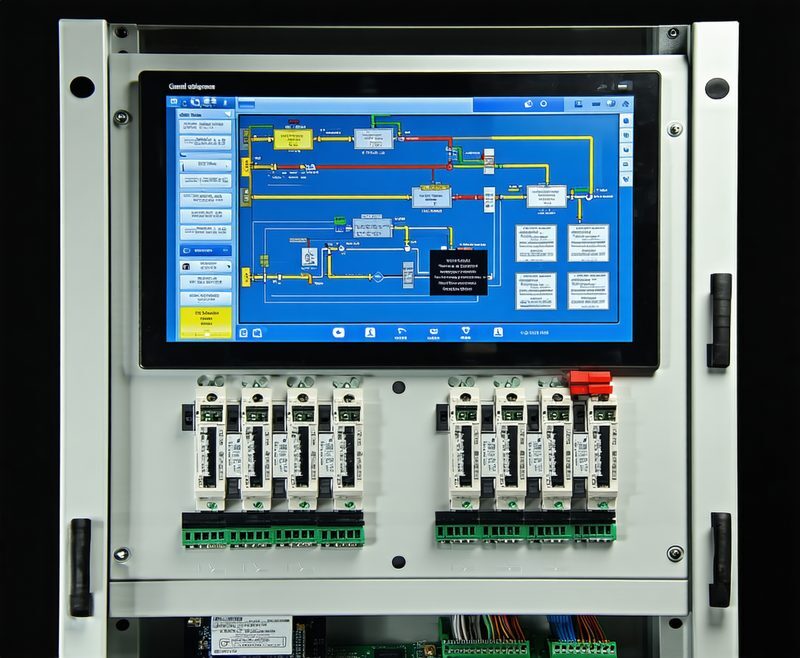

GM-PLC Controller

GM-PLC Controller

Programmable Automation Controller

  • Modular I/O architecture
  • Ladder logic + FBD programming
  • Ethernet/IP, Modbus TCP
  • HMI touchscreen option
  • DIN rail mounting
Enquire
GM-SCADA Gateway

GM-SCADA Gateway

Industrial IoT Gateway

  • Protocol converter
  • Edge computing capability
  • SCADA/MES integration
  • OPC-UA support
  • Cybersecurity hardened
Enquire

Custom Solution

Built to Your Specs

Need a specific channel count, sensor type, or form factor? We design and manufacture custom solutions.

GM-DL Pro — Full Specifications

Detailed specifications for engineering and procurement teams

🛡 Physical Integrity

Machined Resilience

EnclosureMachined Industrial Aluminum (EMI/RFI Shielded)
IP RatingIP66
Operating Temp-40°C to +85°C (Ambient)
MountingFlush Panel Mount / DIN-Rail
WiringScrew Type Terminal Blocks

📈 Measurement Core

Precision Analytics

Channel Count4 / 8 / 16 Independent
Input TypeIsolated K-Type Thermocouple
Range0°C to 1024°C
Accuracy±0.1% of Full Scale
Resolution12-Bit Architecture
Cold Junction-20°C to +80°C (Inbuilt)
Sample Rate1 Sec to 60 Hours
Input Impedance>10 MΩ

⚡ Power & Protection

Mission Safety

Dual Input Power207-253V AC / 9V-36V DC
ProtectionReverse Polarity, Over-voltage, ESD 2000V
WatchdogHardware Timer (Auto-restart)
TimingBattery-backed RTC + NTP Sync

🖥 Display & HMI

Dynamic Dashboard

Display7" Capacitive Multi-Touch
Resolution800 x 480 (High Brightness)
Features:
  • Real-time multi-channel trend graphing
  • Programmable alarm thresholds
  • Visual and audible alerts

💾 Logging & Memory

Infinite Traceability

Logging Life50+ Years continuous
StorageIndustrial-grade SD
Capacity74,000 Hours / 260M Sets
Format.CSV (CFR 21 Part 11)
Auto-save on power failure + checksum verification

🌐 Connectivity

IoT Ready

WirelessWLAN 802.11 b/g/n
IoTMQTT / REST API
Web HMIHTML5 Server (Zero-install)
PhysicalUSB Type-A
SecurityPassword Protected

Product Datasheet

GM-DL Pro Series — detailed documentation

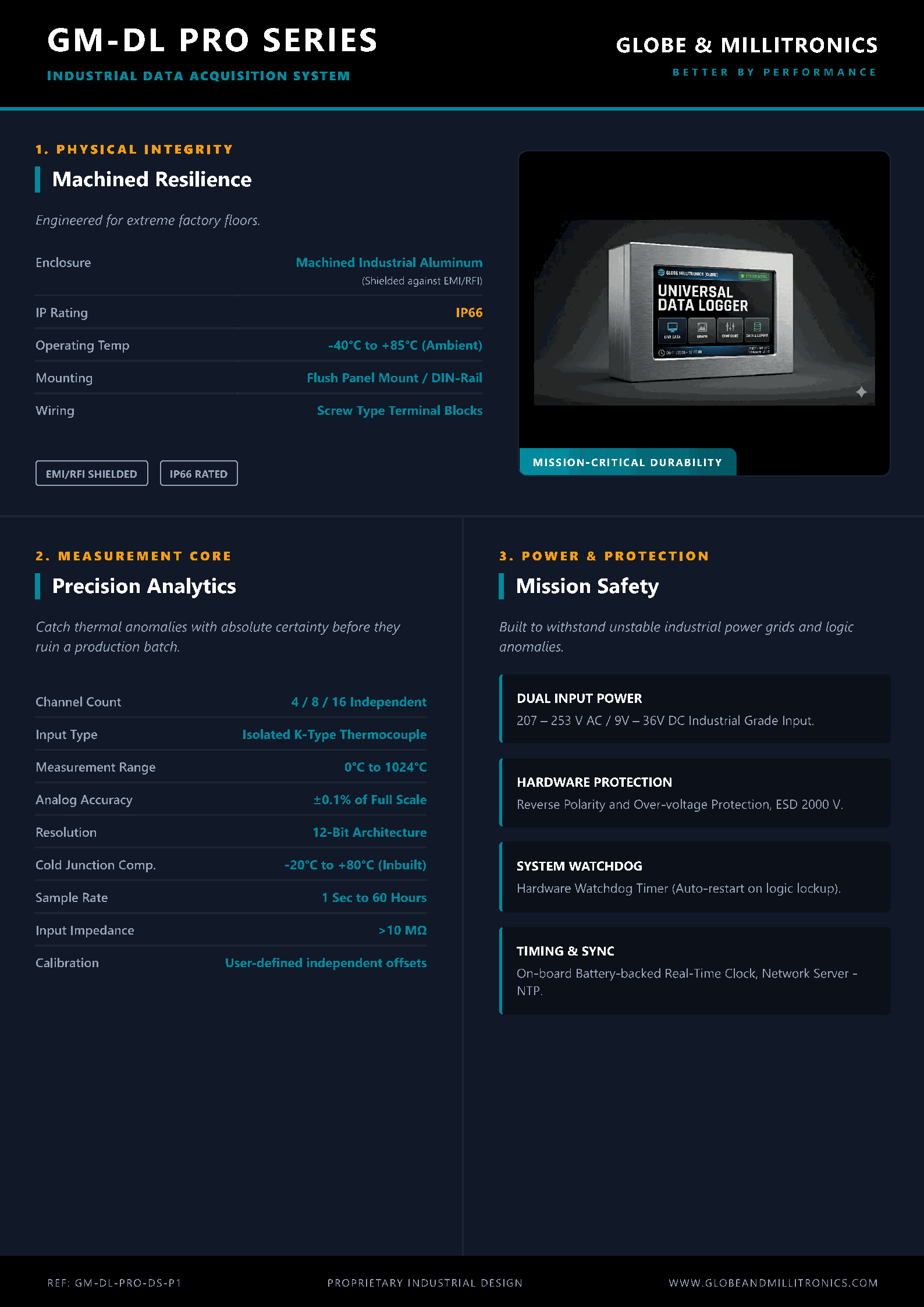

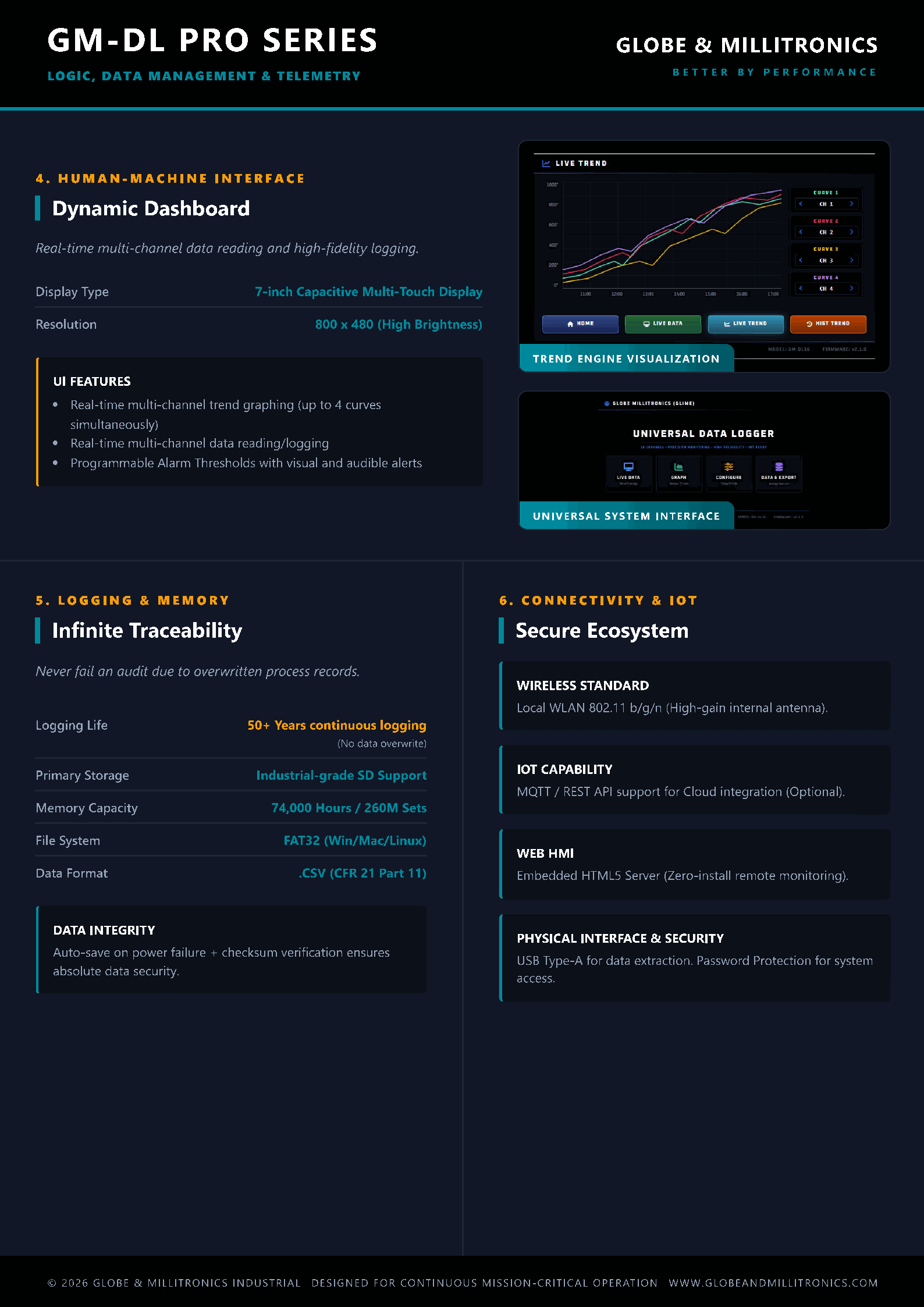

GM-DL Pro Datasheet Page 1 GM-DL Pro Datasheet Page 2

Need Help Choosing?

Tell us your application and we'll recommend the right product for your needs.

Get Recommendation
